Singlefunction Timer

impulse generator
SA
STG

1 co contact

adjustable time ranges
0,15s … 3s
1,5s … 30s
15s … 300s
3min … 60min

ZTG
ZTG

2 co contact

adjustable time ranges
0,05s … 10s
3s … 1min
0,5min … 10min
3min … 1h

or at custumer request

BTG
BTG

2 co contact

adjustable time ranges
0,05s … 10s
3s … 1min
0,5min … 10min
3min … 1h

BTG
BTGF

2 co contact
with galvanic isolation between A1/A2/A3 and Z1/Z2/Z3

adjustable time ranges
0,05s … 10s
3s … 1min
0,5min … 10min
3min … 1h

Categories: ,
delay on release
SA
SA

1 co contact

16 selectable time ranges from
0,05s … 1s
to
5h … 100h



Z_serie V4
ZA

1 or 2 co contact

continuous time ranges from
10ms … 12 days, adjustable with 2 trimmer and 1 potentiometer for fine adjustment

controlling of time function about a control voltage at B1

delay on operate

*without auxilary voltage

SABV
SAB

1 co contact

16 selectable time ranges from
0,05s … 1s
to
5h … 100h

electrical activation:
input control voltage @ B1 :20 – 275V AC/DC
output control voltage @ B2 :30V DC

Z_serie V4
ZAB

1 or 2 co contact

continuous time ranges from
10ms … 12 days, adjustable with 2 trimmer and 1 potentiometer for fine adjustment

controlling of time function about a control voltage at B1

BAB
BAB*

2 co contact

4selectable time ranges from
0,1s … 10s
to
0,3min … 30min

pulse on release
SEW1
SEW

1 co contact

16 selectable time ranges from
0,05s … 1s
to
5h … 100h

Z_serie V4
ZEW

1 or 2 co contact

continuous time ranges from
10ms … 12 days, adjustable with 2 trimmer and 1 potentiometer for fine adjustment

controlling of time function about a control voltage at B1

pulse on operate
SAW
SAW

1 co contact

16 selectable time ranges from
0,05s … 1s
to
5h … 100h

electrical activation:
input control voltage @ B1 :20 – 275V AC/DC
output control voltage @ B2 :30V DC

Z_serie V4
ZAW

1 or 2 co contact

continuous time ranges from
10ms … 12 days, adjustable with 2 trimmer and 1 potentiometer for fine adjustment

controlling of time function about a control voltage at B1

Watchdog-
timer
SWD
SWD

1 co contact

16 selectable time ranges from
0,05s … 1s
to
5h … 100h

Z_serie V4
ZWD

1 or 2 co contact

continuous time ranges from
10ms … 12 days, adjustable with 2 trimmer and 1 potentiometer for fine adjustment

controlling of time function about a control voltage at B1

impulse-
forming relay

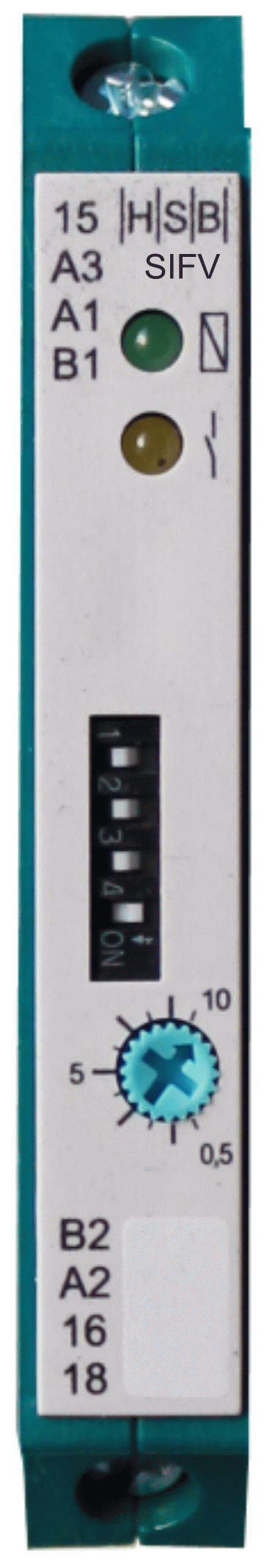

SIFV2
SIF

1 co contact

16 selectable time ranges from
0,05s … 1s
to
5h … 100h

Z_serie V4
ZIF

1 or 2 co contact

continuous time ranges from
10ms … 12 days, adjustable with 2 trimmer and 1 potentiometer for fine adjustment

controlling of time function about a control voltage at B1

contact protection relays
SKS
SKS

1 co contact

16 selectable time ranges from
0,05s … 1s
to
5h … 100h

ZTG,ZWD
ZKS

time fordelay-on operate and release separatly adjustable

1 or 2 co contact

time ranges from
0,05…10min adjustable about dip switches

controlling of time function about a control voltage at B1

Z_serie V4
ZKS

time fordelay-on operate and release common adjustable

1 or 2 co contact

continuous time ranges from 10ms … 12 days, adjustable with 2 trimmer and 1 potentiometer for fine adjustment

controlling of time function about a control voltage at B1

star-
delta-
relays
SSD
SSD

2 co contact

4 selectable time ranges
0,5s … 10s
1,5s … 30s
5s … 100s
15s … 300s

ZSD_V4
ZSD

2 co contact

time ranges from
0,05s … 600s adjustable about trimmer and potentiometer for fine adjustment

controlling of time function about a control voltage at B1

flash relays
SBR2
SBR

1 co contact

16 selectable time ranges from
0,05s … 1s
to
5h … 100h

Z_serie V4
ZBR

1 or 2 co contact

continuous time ranges from
10ms … 12 days, adjustable with 2 trimmer and 1 potentiometer for fine adjustment

controlling of time function about a control voltage at B1
